Information for Powder Coated Wire Cable Tray

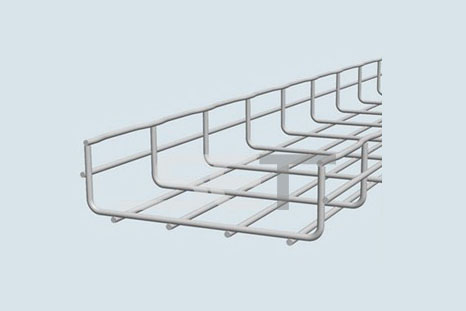

Large Image : Information for Powder Coated Wire Cable Tray

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	SET

Payment & Shipping Terms:

Minimum Order Quantity:	3000m
Packaging Details:	Bubble film
Delivery Time:	30 days after confirming order
Payment Terms:	L/C,D/A,D/P,T/T

Detailed Product Description

Information for Powder Coated Wire Cable Tray

Material:
Q235 Steel (Chinese standard steel), SS304, SS316 & SS316L

Surface Finish:
Powder coated- for indoor use to JG/T3045-1998, between 6 and 10 microns thick
Hot Dipped Galvanized-for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick
Acid Washing or Electrolytic Polishing- for stainless cable basket tray use

Dimensions:
The dimensios of wire mesh cable tray are all internal. Available for customized.
Wire Mesh Cable Trays are constructed with a 50mm x 100mm mesh configuration..
Depth of 35mm, 50mm, 60mm, 75mm, 100mm &150mm.
Widths: 50~900mm.
Length of 2997 fit max loading capacity in 40'ft containers.
Diameters of wires are 3.8~ 6.0mm

Tag : wire cable tray , cable tray , electro zinc plated cable tray , hot dipped galvanized cable tray
