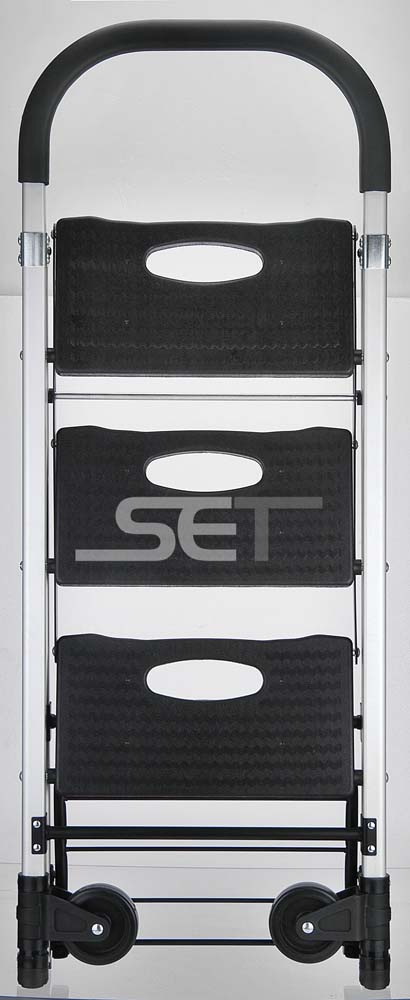

折叠式两用楼梯车 Mobile Multi Purpose Folding Steps(US type)
Ideal for used in hotels, libraries, supermarket, warehouse & household. Can be converted from folding steps into a sack truck in a few easy steps and conviniencely transported.
Product advantages:
1. Stepping locking system designed,. You can fix the ladder by stepping on the step in the bottom
2. When you step the rod in the bottom, the wheel can turn by 90 degree, then you can easily move the ladder
3. All steps are with anti-slip carpet and Reflective stripes
| |
型 号 code |
FHC-3L |
FHC-2L |
 |
车式承重 Trolley max load |
60 kg |
60 kg |
 |
梯式承重 ladder max load |
120 kg |
120 kg |
 |
高度 Total height |
1265 mm |
990 mm |
|
顶层高度 Top level Hight |
770 mm |
520 mm |
 |
脚轮尺寸 wheel diameter |
100 mm |
100 mm |
 |
折叠尺寸 folding size |
90×480×1265mm |
90×480×990mm |
 |
梯式尺寸 unfolding size |
735×470×1190mm |
490×490×920mm |
 |
层数 no.of level |
3L |
2L |
 |
净重 net weight |
8.2 kg |
6.5 kg |
|
